Electrical checklist for construction site / Some points before electrical distribution work



Check list of Electrical Erection under FSP ADB Scheme.


For erection work 1st we have to erect  Poles which are 4 types i.e 8.5 meter 180kg PCC Pole,9 mtr 400kg PCC Pole,11 Mtr STP,13 Mtr STP.


Before erection we have to get knowledge about GTPS of above pole.

8.5 Mtr 180kg Pcc pole GTP

1

Lenghth

8.5 meter

2

Working load

180kg

3

Weight pole the pole

425kg(Approx)

4

Top dimension

92x145 mm

5

Bottom dimension

92x300mm

9 Meter 400 KG GTP

1

Lenghth

9 meter

2

Working load

400kg

3

Weight pole the pole

675kg(Approx)

4

Top dimension

225x100 mm

5

Bottom dimension

395x100 mm

11 Meter STP

  • Length                                              11 Meter
  • Working load                                   260Kgf
  • Outside diameter and Thickness
Bottom-    193.7x4.85 mm
Middle-        165.1x4.5mm
Top-            139.7x4.5mm





3

Section Length

Bottom

5.6 mtr

Middle

2.7 mtr

Top

2.7 mtr

4

Weight of the pole

227 Kg

5

Base plate (MS Plate)

300x300x6mm(Approx. weight 4.5Kg)


13 Meter STP

1

Lenghth

13 Meter

Working load

435 Kgf

2

Outside diameter and Thickness

Bottom

219.1x5.9 mm

Middle

193.7x4.85mm

Top

165.1x4.5mm

3

Section Length

Bottom

5.8 mtr

Middle

3.6 mtr

Top

3.6 mtr

4

Weight of the pole

343 Kg

5

Base plate (MS Plate)

350x350x8mm(Approx. weight 8Kg)


Let's know how to erect Above pcc pole.


As per approved GA Drawing , following procedure to erect poles.

1

8.5 Mtr 180 kg pcc pole pit size

Manual Pit size

0.45x0.45x1.5 mtr

0.303m3

By hydra/Machine of 20inch blade/fermers

0.508 diax1.5mtr

For Volume-3.14x0.254x0.254x1.5-0.303m3

By deduction pole size we have to do concreting of volume 0.288 m3(1:2:4 mix ratio)


2

9 Mtr 400 kg pcc pole pit size

Manual Pit size

0.45x0.45x1.5 mtr

0.303m3

By hydra/Machine of 20inch blade/fermers

0.508 diax1.5mtr

Volume

3.14x0.254x0.254x1.5mtr

By deduction pole size we have to do concreting of volume(1:2:4 mix ratio)


3

11 Meter STP

Manual Pit size

0.55x55x1.8mtr

By hydra/Machine of 22inch blade/fermers

0.55 diax1.8 mtr

Muffing

300mm

By deduction pole size we have to do concreting of volume 0.44 m3(1:2:4 mix ratio)

4

13 Meter STP

Manual Pit size

0.62x0.62x2.165

By hydra/Machine of 24inch blade/fermers

0.61x2.615mtr

Muffing

300 mm

By deduction pole size we have to do concreting of volume 0.64 m3(1:2:4 mix ratio)

5

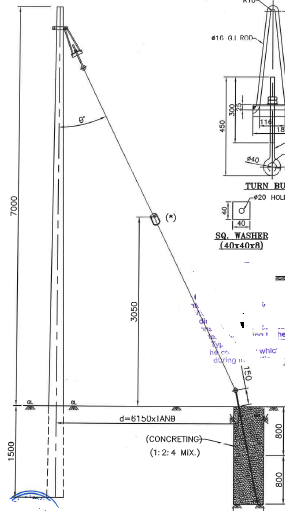

Stay Grounting details

Stay distance from pole

6150 Tan θ

(θ angle between pole and stay wire vary from 30 degree to 45 degree)

Stay distance from pole

               For θ=30degree,stay distance from pole should be 3548.55 mm

                       θ=45degree,stay distance pole should be 6150mm






Conclusion: I will update here regularly. Please keep visiting regular site I am sharing this knowledge for your ease of work.
